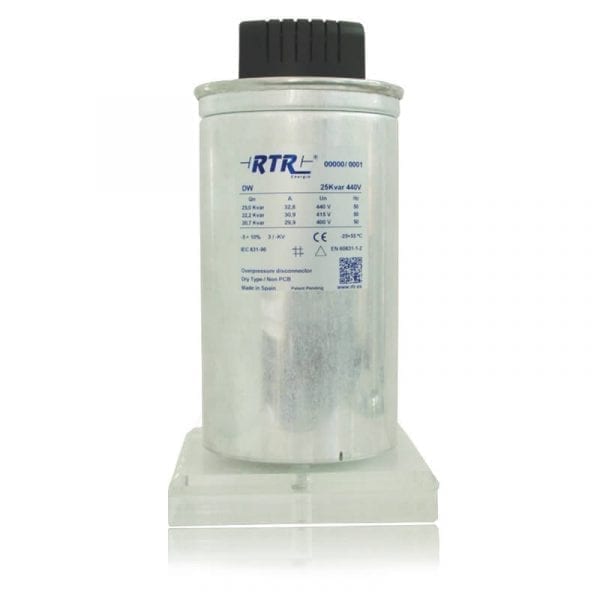

Capacitor 25 KVAR – 440v

SKU: RTR-25-440 Category:
  • Description

Product Description

Low voltage capacitor line MAC / CENTER – RTR brand
Factory production: RTR Energia, SL – Spain
Origin: Madrid – Spain.
Production standards: IEC 60 831 – 60 831 EN 1/2 – 1/2
Commodity certificates: Certificate of Origin (CO), quality certificate (CQ), UL certification, ER, IQNET.
General description:
Capacitor dielectric book dry capacitor made of polypropylene plates to mount lower metal loss, dry capacitors are filled with synthetic resin non-toxic eco-friendly polyurethane environment, this product was produced toxic RTR rights by factories, synthetic resin has properties against heat loss, this product line is integrated combat system increases the pressure inside the casing aluminum capacitors,
Uses:
For the factories, warehouses, port facilities, buildings, companies can work to reduce energy costs. increased power efficiency
Specifications:
Overvoltage protection system: when the electrodes swell, the system will interrupt current flow inside the inner capacitor immediately
voltage ……………………………… .230 / 400/440/460/480/525/690/1100 V
Tolerance ……………………………………………………… 5% + 10% .-
………………………………… ..50Hz Frequency (60Hz upon request)
working temperature 40ºC + 55ºC ..- ………………………………………
……………………………………… Dielectric loss <0.5 W / KVAR
Total loss ……………………………………………. <0.45w / kvar
The maximum voltage of 1.1 x Un ** ………………………………………………
Maximum power line ………………………………………………… .1,5 x Print
Highest voltage THD ……………………………………… ..2%
The highest in the current THD …………………………………… .25%
There …………………………………………………… discharge resistor integrated
Connect a sense …………………………………………………………… .tam
Housing Material aluminum cylindrical tube ……………………………………………
………………………………… Disconnect system overpressure
.tam ……………………… Dielectric film metallized olypropilene
Test voltage between two poles ……………… 2.15 x Un 2 sec.
Test voltage in case … .. have mandatory 3 kV for 10 seconds
Type ………………………………………………………… pole. connector
Field-level area to 200 x ……………………………………… ..up Print
Protection level ……………………………. IP 20, indoor conditions
The highest humidity ……………………………………………………. 95%
………………………………………………… .120.000 Hour lifespan capacitors
Work height over sea level multi 2000m
