B Wall Bracket Assembly

B Wall Bracket

C-Wall-Bracket-Assembly C Wall Bracket Assembly
Category:

Description

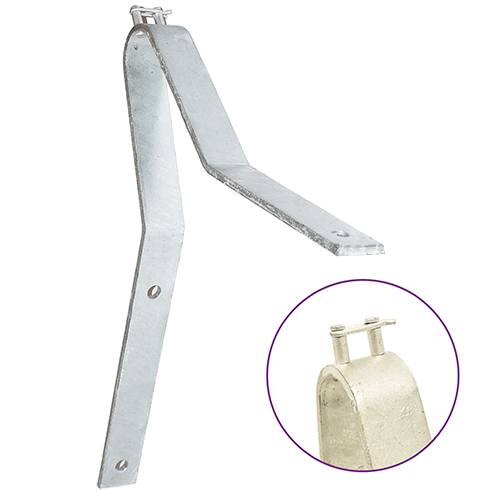

  • B Wall Bracket used for placing strand at outside corners on masonry buildings.
  • Supplied with two riveted studs and a mating retaining-clip at the end of the bracket to retain the sheathed strand of self-supporting cables.
  • The two arms of the bracket are 6-1/4″ and 10″.
  • Bracket provides a 4″ offset from wall.
  • Mounting holes are 7/16″ in diameter.
  • Stock size is .250″ x 1-1/2″.
  • Hot dip galvanized to meet ASTM Specification A153.
