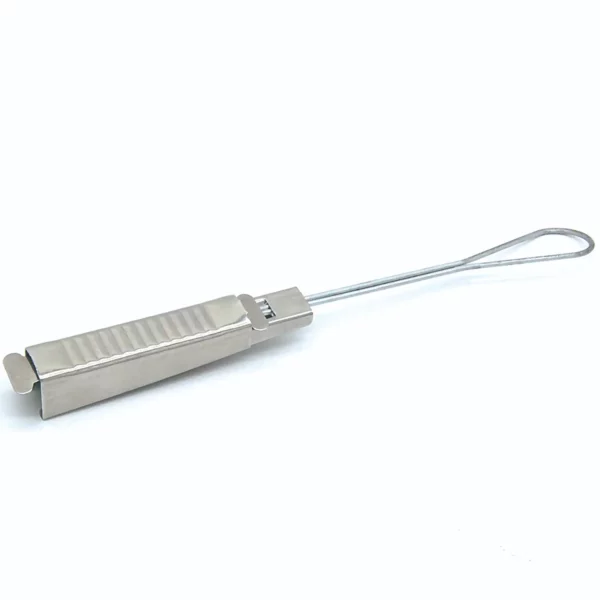

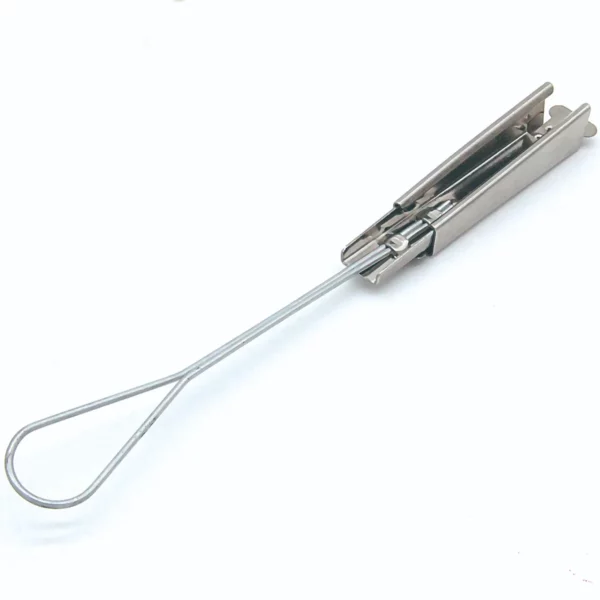

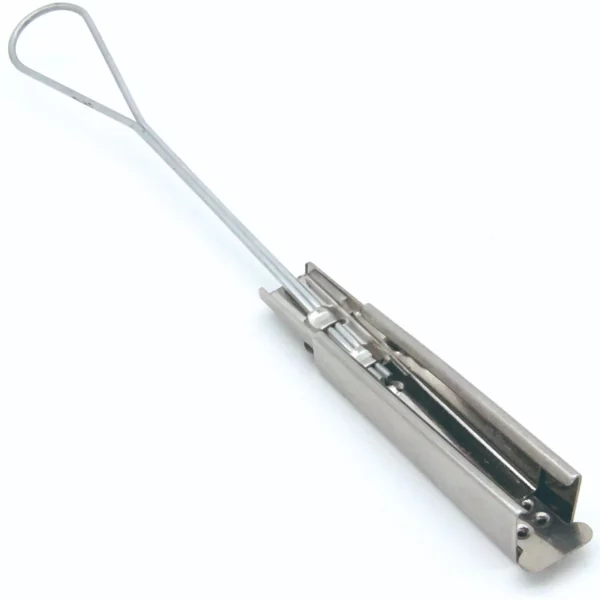

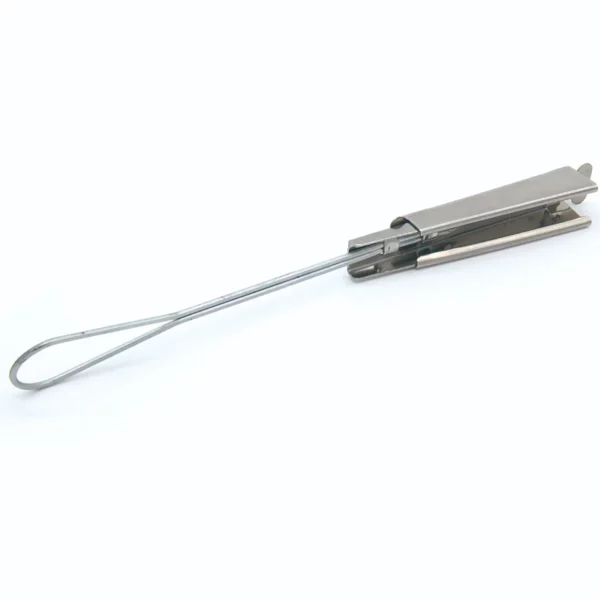

Drop Wire Clamp

Description

A drop wire clamp is deployed for supporting one and two pair fiber drop wires at house hooks, span clamps, drive rivets, and different drop attachments. Moreover, it is used for supporting both aerial services ends drop span at building and the messenger strand. Most of the drop wire clamps are removable.

A drop wire clamp beneficial for a double-stranded figure type cable comes with a trough and a plate (aperture) plate lowering from a trough’s end so that one clamp is suspended from an appropriate anchor. This trough is sized for accepting the cable without the need for threading and without any compression on the cable portion that carries the signal. The line is maintained in this trough by wrapping the eliminated support strand surrounding the channel.

A drop wire for a cable including a support strand as well as a strand that carries a signal, the clamp is composed of the following:

An open trough that accepts the cable not having the threads, wherein the trough’s available portion is better defined through the edges, the trough edges being supported by means for the maintenance of support strand that gets separated from the cable and is wrapped over the trough to keep the thread in the track; also, the means for engaging the support, so the clamp is better support from the needed structure. On the other hand, a plate gets extended from a trough’s one end and supports the means for engagement.

As a professional manufacturer, supplier, and exporter, QUAN PHAM can support all sizes of drop wire clamps, we can also customize them according to your designs.
