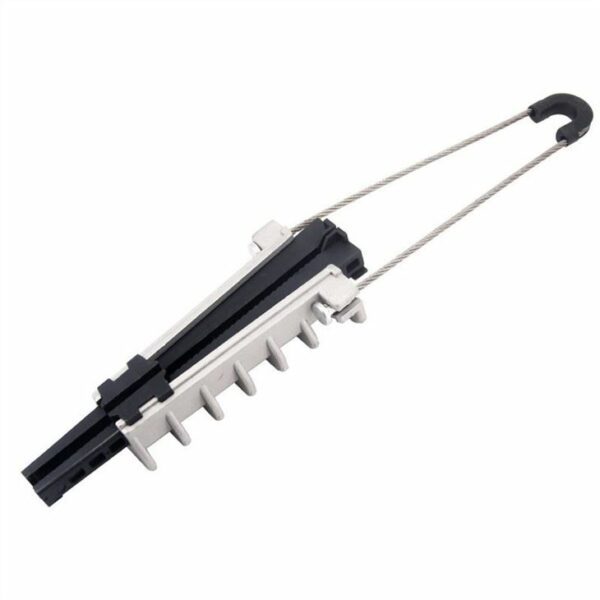

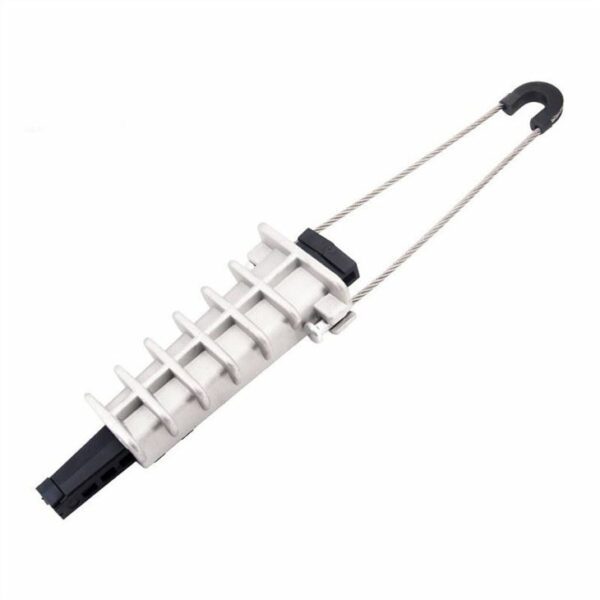

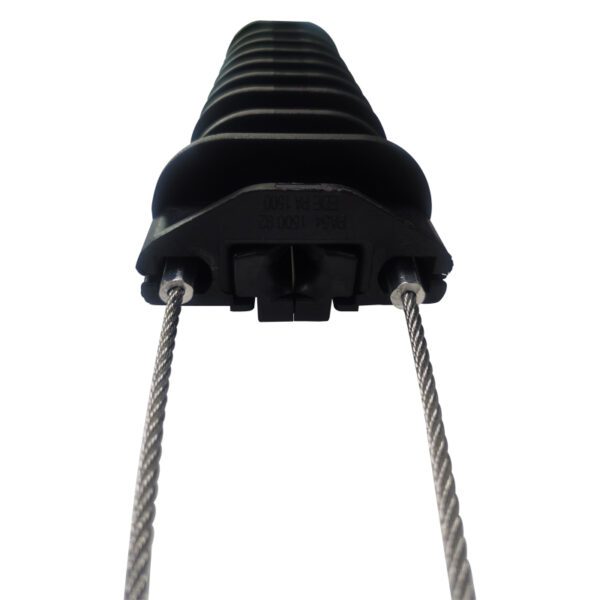

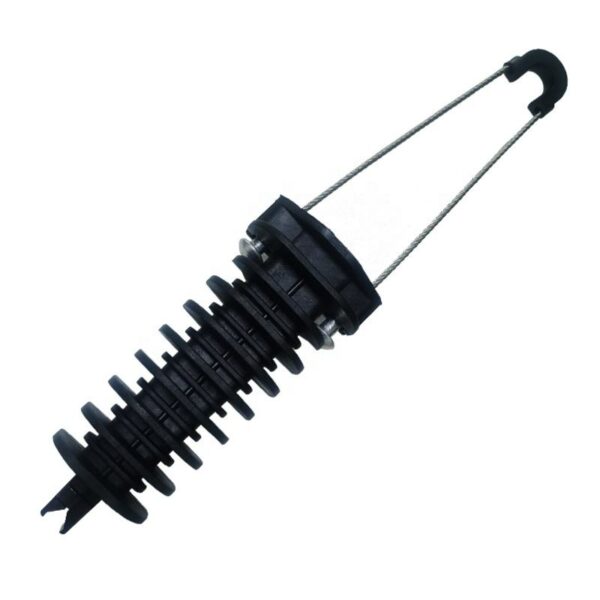

Anchoring Clamp

Wedge-type tension clamp is also called an anchoring clamp. The tensioning provides the advantage of anchor and spiral clamps, these anchoring tension fasteners are mounted on a bend with the beginning and end of the route with the different intermediate points of greater length where it is feasible to stretch.

These wedge-type tension clamps are high in strength, fixation reliability, compactness, and ease of use and have a good installation speed. Also, these clamps are capable of securing cables with a diameter of 5-7 mm.

The installation of optical wire is carried out using a suspended installation method, while the hinge is used to install brackets, hooks, or traverses.

The body of the clamp loop is molded plastic and polymer wedges and made up of hot-dip galvanized steel wire.

As a professional manufacturer, supplier, and exporter, QUAN PHAM can support all sizes of Anchoring Clamps, We can also customize them according to your designs.


This clamping tool has budget modification
Made up of durable plastic, this clamp is resistant to high temperature and UV radiation
To provide additional ease of installation the fixing loop is made up of hot-dip galvanized steel wire
The clip is provided with a retainer for ease of use
There is no requirement for special tools for the installation of the clamp
The plastic of the clamp loop is strong and can withstand frost.

Frequently asked questions (FAQ)

What is anchoring clamp?

These clamps are designed for the anchoring areal round cables of FTTH from 6mm to 14mm. These anchor clamps outfit to different network configurations.

How is the anchoring clamp used?

The most common use of anchoring clamp is in power lines between residential buildings, industrial complexes while self-supporting insulated wires are frequently used for fastening.

What is the function of the anchoring clamp?

To prevent the wires from being suspended by icing, breeze or gravity anchor clamps is used. Also, the reliable installation of wires when tensioned between the support of transmission lines comes under the function of anchoring clamps.

How to install the anchoring clamp?

Following is the procedure for mounting the anchoring clamp

  • Take two straps of suitable length
  • Pass the open end of the strap through the buckle
  • Locate the bracket on the pole and wrap the strap around them
  • Locate the other open end of the strap into the strap binding tool and lock the tool
  • Tension the strap by rotating the handle of the strap binding tool
  • Cut the additional strap using the cutting edge
  • Hammer to bend the flanges
  • Bracket now has been mounted.

types of anchoring clamp

Models 1AN16.35.* 1AN35.70.* 1AN50.70.* 1AN70.95.* 1AN95.120.*
Cable range (mm2) 16-35 35-70 50-70 70-95 95-120
Cable diameter(mm) 8~11 10~16 12~14 14~16 16~20
Core No. 1 1 1 1 1
MBL (daN) 1000 1500 1500 1500 1800
Remarks rope length 230mm
