Quan Pham Compact Substation Kiosk: A Robust Solution for Power Distribution

Discover the Quan Pham Compact Substation Kiosk, an innovative and efficient solution for modern power distribution needs. This article provides a detailed overview of its design, applications, and technical excellence.

1. Introduction to Quan Pham Compact Substation Kiosk

The Quan Pham Compact Substation Kiosk is a fully enclosed transformer substation designed to international standards. Renowned for its compact footprint, streamlined configuration, and ease of installation and transport, it delivers reliable power distribution with minimal hassle.

2. Applications of the Compact Substation Kiosk

The Quan Pham Compact Substation Kiosk is versatile, providing medium-voltage (MV) electricity to a wide range of settings, including:

• Industrial facilities and manufacturing plants

• Residential neighborhoods

• Complex construction projects and urban developments

Its adaptability makes it an ideal choice for diverse power supply demands.

3. Structure of the Compact Substation Kiosk

The Quan Pham Compact Substation Kiosk is engineered with four key components: the kiosk electrical enclosure, medium-voltage compartment, transformer compartment, and low-voltage compartment. Each section is meticulously designed to ensure optimal performance and durability.

3.1. Kiosk Electrical Enclosure

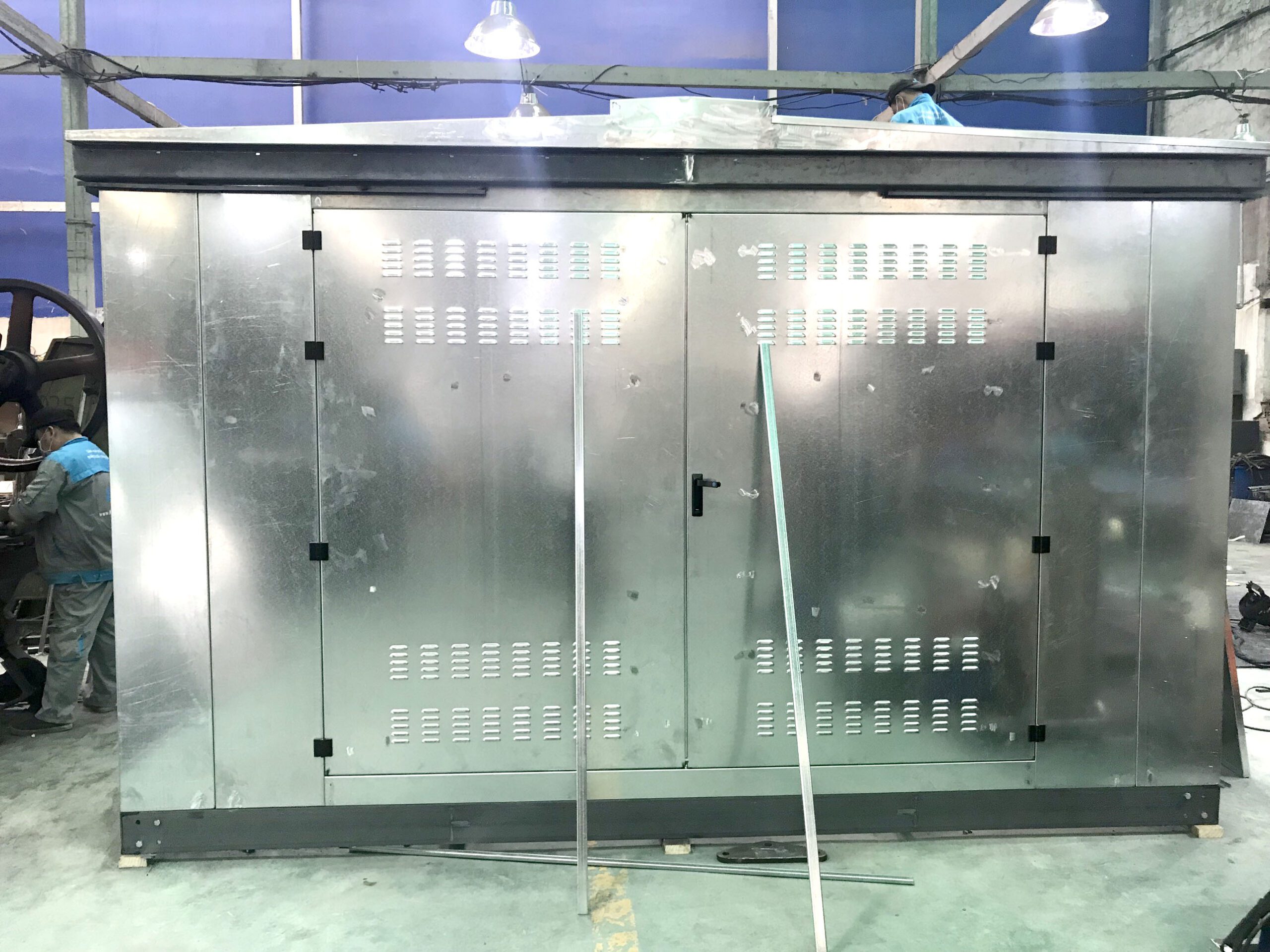

The enclosure safeguards internal equipment, shields against environmental factors, and prioritizes user safety. Constructed from galvanized or stainless steel with double-sided electrostatic powder coating, it offers robust protection. Key features include:

• Frame: 3mm thick steel for exceptional strength

• Roof: Double-layered 2mm steel for insulation against temperatures exceeding 45°C

• Door: Double-layered 2mm steel with sturdy hinges and secure locking mechanisms

• Base: I-shaped steel (2000) for stability

• Finish: Electrostatically powder-coated for enhanced safety and durability

3.2. Medium-Voltage Compartment

Mirroring a Ring Main Unit (RMU) cabinet, this compartment houses critical components like fuses, disconnectors, and medium-voltage circuit breakers. It is isolated by anti-arcing mesh for safety, with specialized relays or Load Break Switches (LBS) combined with fuses to ensure reliable protection.

3.3. Transformer Compartment

The transformer compartment accommodates various transformer types, including single-phase, three-phase, or amorphous transformers. Key specifications include:

• Connection Types: Yzn or Dyn

• Capacities: 160kVA to 3000kVA (e.g., 160kVA, 400kVA, 1000kVA, 2500kVA)

• Secondary Voltage: 220/440V

3.4. Low-Voltage Compartment

This section houses measuring, protection, and switching devices compliant with IEC 60947-2 standards. The main low-voltage switchboard features Air Circuit Breakers (ACBs) or Molded Case Circuit Breakers (MCCBs) tailored to specific requirements.

4. Operating Conditions

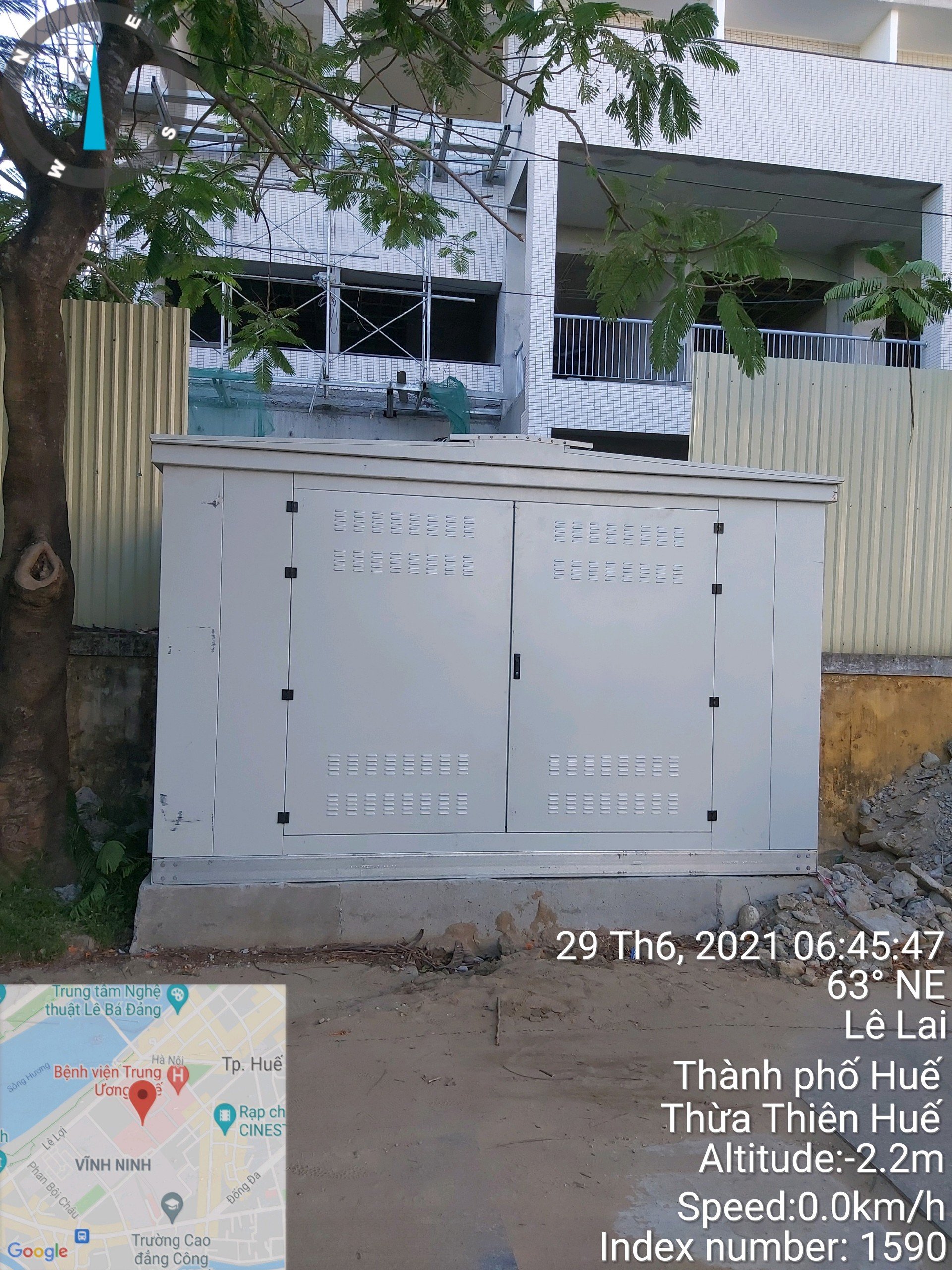

With its compact and independent design, the Quan Pham Compact Substation Kiosk is easy to operate and maintain, even in public spaces like sidewalks or industrial zones. All functions are accessible via the front door, simplifying operation and servicing.

5. Technical Specifications

• Rated Voltage: 15kV, 24kV, or 36kV

• Frequency: 50Hz

• Capacity: Ranges from 30kVA to 4000kVA (e.g., CS-30, CS-1000, CS-4000 with oil transformers)

• Insulation: Air-insulated or SF6-insulated (24kV)

• Protection Levels: IP5X/IP4X for medium/low-voltage compartments; IP4X for transformer compartment (with natural or forced ventilation)

• Operation: External access for ease of use

• Compliance: Enclosure, doors, locking mechanisms, and ventilation meet IEC standards

6. Rigorous Testing Standards

Testing is a critical step in the production of Quan Pham Compact Substation Kiosks, adhering to stringent electrical regulations. As the heart of power transmission and distribution systems, these kiosks undergo thorough testing to prevent malfunctions that could disrupt entire electrical networks. Quan Pham has invested in a state-of-the-art transformer testing laboratory equipped with advanced tools from HAEFELY, Switzerland, ensuring precision and reliability in every unit.

7. High-Quality Equipment and Materials

The Quan Pham Compact Substation Kiosk integrates premium components from globally renowned brands, including:

• RMU Cabinets: ABB, Schneider, Siemens

• Switching and Protection Devices: ABB, Schneider, Siemens, LS, Hyundai

• Auxiliary Components: Meters, current transformers, switches, indicators, fuses, surge arresters, and grounding systems from trusted domestic and international suppliers

• Main Distribution Board and Low-Voltage Cables: Designed for optimal performance and safety

8. Why Choose Quan Pham?

With nearly two decades of expertise in manufacturing transformers and electrical equipment, Quan Pham is a trusted leader in Vietnam’s power sector. Offering professional expertise and on-site warranty services, Quan Pham ensures customer satisfaction. In addition to Compact Substation Kiosks, their product portfolio includes medium-voltage switchgear, low-voltage switchgear, power factor correction capacitor banks, and more.
