Guy Grip

Description

QUAN PHAM guy grip is also called guy grip dead end or preformed guy grip. It’s the world’s best-preformed guy grip dead end for connecting and gripping the conductor, grounding wire, and optical fiber application.

According to the application needs, the guy grip includes dead end cable grips and dead end grip. The guy grip has helically formed legs with inert grits on every turn that holds the messenger wire, conductor, or fiber optic cable securely.

Also, the strand is tacked together on the bent part of the guy grip. The guy grip sizes include Guy Grip 1/8″ 3/8″ 5/16″ and so on.

As a professional manufacturer, supplier, and exporter, QUAN PHAM can support all sizes of guy grips, We can also customize them according to your designs.

How does the guy grip work?

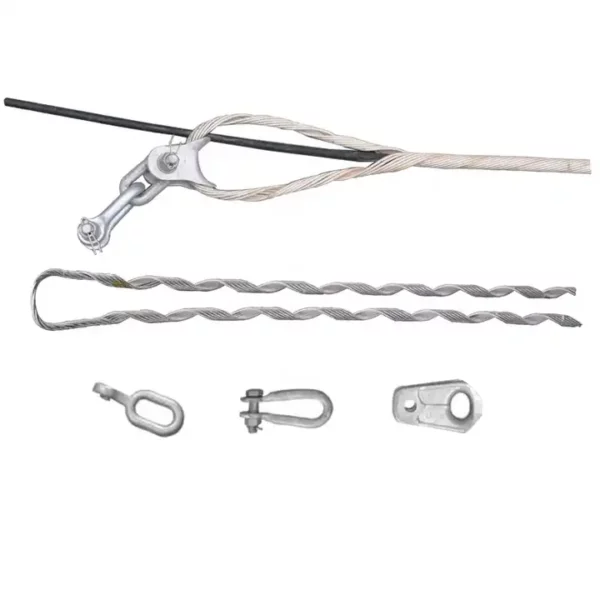

The guy grip is applied by simply wrapping the legs of the guy grip on the conductor, grounding wire, or cable by hand. The guy grip two helical legs wrap into an empty tube, and the preform grip head will be closed as a circle.

When the guy grips dead end wrap on the conductor or stay wire, there will be strong grip strength to avoid the slip between guy grip and conductors.

The closed circle will be joined with anchor rod or insulators on pole or tower.

According to the application, guy grip dead end clamps are used to connect the anchor rod on the pole end or wrap the conductor on the tower or join the grounding wire.

The raw materials of the preformed guy grip are aluminum wire, galvanized steel wire or aluminum clad steel wire.

QUAN PHAM preformed guy grip dead end is made of the same material as to which they are applied.

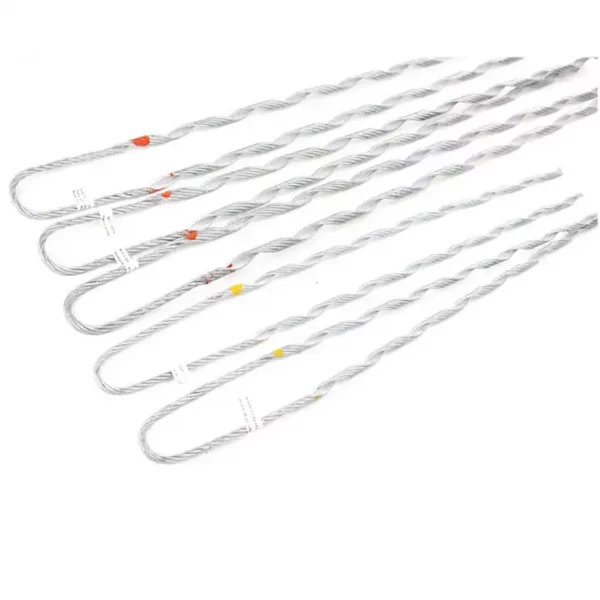

There are color codes on each guy grip dead end clamp, helping in easily sizing the conductor. QUAN PHAM preformed grip has left or right two lay directions.

The Best Guy Grip Manufacturer

As a leading preformed grip manufacturer, QUAN PHAM knows the preformed grip, market, and your needs. QUAN PHAM accepts any type of customized guy wire dead end grips. Please, contact QUAN PHAM to start the happy trip now.

Guy grip is a must-have pole line hardware accessory for your electrical and telecommunication systems.

But you know what?

You must get high quality, reliable and easy to install guy grip.

That’s exactly, what I am going to cover in this guide.

By the end of this guide, you will know the correct specification, installation procedure, best material, size, etc. – I am going to cover everything in this guide.

Let’s dive right in…

What is a Guy Grip?

Have you seen this accessory before?

Preformed Tension Clamp

As you can see, a guy grip is a set of wires, carefully “twisted” to add stability to the telecommunication or electric cables.

They come in different sizes, designs, and options, depending on the unique application requirements.



Guy grip

Maybe, you can look at this to have a clear picture of what I am talking about:

Section of pole line hardware

I hope, we are now on the same page!

Now, depending on the design of the guy grip, you can also refer to this pole hardware as guy grip dead end or preformed guy grip.

And the truth is, by choosing an appropriate guy grip, you will find installing pole line hardware a simple and easy process.

Why You Need a Guy Grip

Here, I am going to show you why you need a guy grip dead end for your pole line installations.

Guy grip stands out as the best-performed accessory used to connect, grip conductors, grounding wires and optical fiber applications.

According to the needs of the application, guy grip comes with a dead end cable grip.

It also comes with legs that are helically formed by inert grits on all turns that grip messenger wire, conductor or strand optic cables safely.

Additionally, the fiber is pinned together on the bent part of the guy grip.

Guy dead ends are made for utilization with standard guy fibers of 1” diameter or less. Made from the same wires, dead ends can be used for firing up steel and other wires.

Guy dead ends are made to guy poles in constructing communication and power lines.

Guy Grip Specification

Before you buy a guy grip for any application, you should consider the following:

1.Guy Grip Material

Depending on the nature of the application, guy grips may feature anchor rods connected at the end of the pole or have conductors on the tower.

Still, effectiveness and efficiency will depend on the type of material.

Here, you may consider the following:

• Aluminum wire
• Aluminum clad steel wire
• Galvanized steel wire

2. Guy Grip Design

A good design should have right/left to lay directions. It makes installation easier.

Also, there are color codes on every guy grip clamp. This makes it easier for it to be used in sizing conductors.

Dead end grip

Moreover, the design of a guy grip can make it suitable for re-installation within 90 days.

Besides, it may also feature helical legs enfold into an empty tube. Its head will then be closed like a circle.

3.Guy Grip Size

Here, you should focus on the cross sectional area and length of the guy grip.

Depending on the application, guy grip comes in different sizes such as 1/8”, 3/8”, 5/16”, and others.

But again, it is important to remember that guy grip comes in different brands.

Therefore, your ability to buy the accessory from a reputable supplier will obviously guarantee its quality.

The general process in making the preformed guy grip:

As the installation process, the process of making a guy grip is also simple and straightforward.

Here is all you should do:



Dead end grip

1. The aluminum or steel wire is cut into an ideal length with the help of a cutting machine. It is then performed into the helical shape.
2. 3 or 5 aluminum or short steel wire pieces are bundled or packed together using a cable tie. After that, the bundled wire is dipped in glue. The wire glue is left to dry up, then the cable’s tire is cut off. All the wires are then dipped in glue again.
3. Spray sanding is done within the helical wire. Sanding is needed to enhance the strength of its grips.
4. Finally, the middle part of the wires is made to stand and bent into two legs.

Again here, the process is simple. However, the manufacturer must adhere to strict quality control to produce quality and reliable guy grip.

How does the guy grip dead end install?

Now we explain the dead end grip installation step by step:

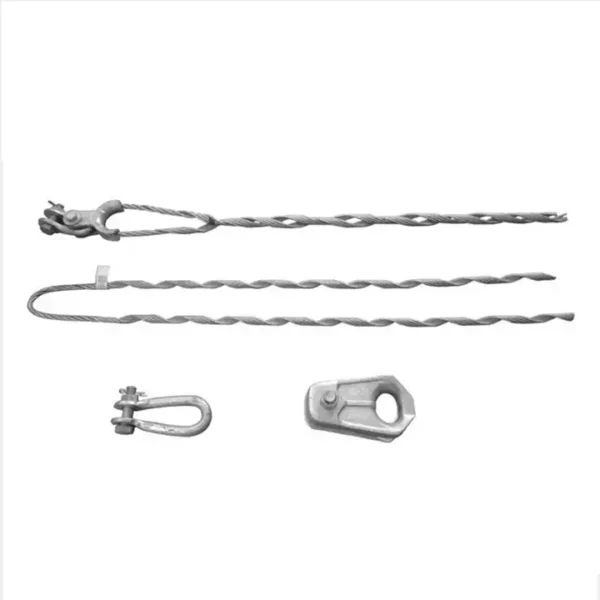

1. The first step is to install the thimble clevis and insert one leg of the preformed guy grip.

2. The second step is to make the two legs of the guy grip dead end parallel with the cable. Make a color label on the cable and The guy grip color mark fit the label on the cable to grab the legs of the guy grip.

3. The final step is to continue to grab the guy grip dead end to ensure the cable is fully wrapped by the preformed grip.

One good thing about guy grip dead ends is that they work in a simple way. Yes, their installation method is very simple.

Here is a simple video on how to install guy grip:

Did you see that?

Anyway, let me make four important observations here:

1. This pole line hardware is installed by just wrapping its legs on conductors, grounding wires or cables by hand.
2. Its two helical legs enfold into an empty tube. Its head will then be closed like a circle.

• When guy grip dead end wraps on the stay wire, the grip will be strong. This helps in preventing slips between the guy grip and the guy conductor.

1. The closed circle will be combined with anchor rods or insulators on towers or poles.

As you can see, there is nothing difficult when it comes to installing a guy grip.

Jingyoung Guy Grip – Your Trusted Pole Line Hardware Manufacturer

Jingyoung guy grip which is also known as performed guy grip or guy grip dead end is simply one of the best.

Jingyoung’s pole line hardware is perfect for connecting and griping conductors, grounding wires as well as optical fiber applications.

There are so many ways Jingyoung makes sure its pole line hardware stands out from the rest. First, it follows a strict quality manufacturing process and adheres to strict testing.

At Jingyoung, you can get guy grip of different sizes, designs and performance criteria.

They have a robust structure, with quality material and are easy to install. They have a high breaking load with 95% grip strength of breaking loads.

Furthermore, Jingyoung does not corrode and can withstand harsh weather conditions. This is because Jingyoung has the ability to adopt different manufacturing technologies such as hot dip galvanizing.

Frequently Asked Questions (FAQs)

What is a guy grip?

A guy grip is a set of wires which are twisted to add stability to the telecommunication or electric cables,

Guy grip is also called guy grip dead end or preformed guy grip, it comes in different sizes, designs, and options, depending on the unique application requirements.

What is the application of guy grips?

Guy grips are used for connecting and gripping the conductor, grounding wire and optical fiber application.

How does the guy grip work?

The guy grip is applied by simply wrapping the legs of the guy grip on the conductor, grounding wire or cable by hand.

The guy grip two helical legs wrap into an empty tube, the preformed grip head will be closed as a circle.

The closed circle will be joined with anchor rod or insulators on pole or tower.

When the guy grips dead end wrap on the conductor or stay wires, there will be strong grip strength to avoid the slip between guy grip and conductors.

What is the manufacture process of guy grips?

1. Cutting aluminum or steel wires into an ideal length, then perform them into the helical shape.
2. After bundling or packing together steel wire pieces with a cable tie, dip the bundled wire in glue. When wire glue is dry up, cutting off the cable’s tire, then dip all the wires in glue again.
3. Spray sanding is done within the helical wire.
4. Make the middle part of the wires to stand and bent into two legs.

How to install the guy grip dead end?

1. Install the thimble clevis and insert one leg of the preformed guy grip.
2. Make the two legs of the guy grip dead end parallel with the cable. Make a color label on the cable and The guy grip color mark fit the label on the cable to grab the legs of the guy grip.
3. Continue grabbing the guy grip dead end to ensure the cable is fully wrapped by the preformed grip.

Which Guy Grip sizes can you make?
We can make Guy Grip 1/8” 3/8” 5/16” and so on.

Conclusion

As you can see, guy grip is an important pole line hardware. However, you must choose the right size and design, which is made from a suitable material.

And I am sure, this simple guide offers an ultimate solution for your guy grip needs.

Here at Jingyoung, we are the grand master of pole line hardware.

You can talk to us today, and our team will help you with all your guy grip needs.
