Power Factor Optimization Capacitor Bank Cabinet: A Comprehensive Guide

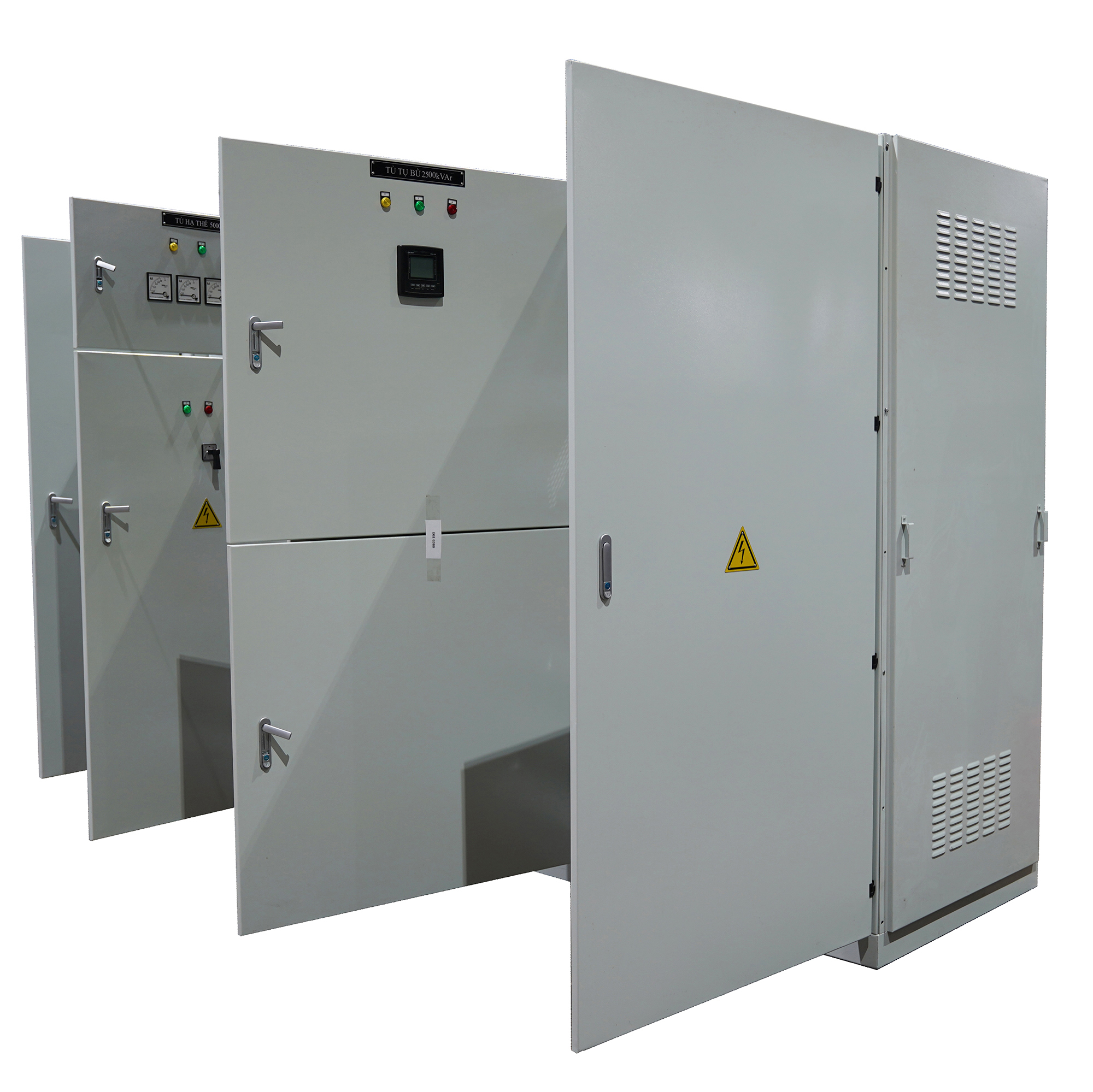

Introduction

A power factor optimization capacitor bank cabinet is an advanced assembly of capacitors, meticulously arranged in parallel and separated by high-quality insulating dielectric layers. This sophisticated system is engineered to store and release electrical energy efficiently within a circuit. Commonly referred to as power factor correction capacitors, reactive power compensation units, or simply power factor correction systems, these cabinets play a pivotal role in enhancing electrical efficiency.

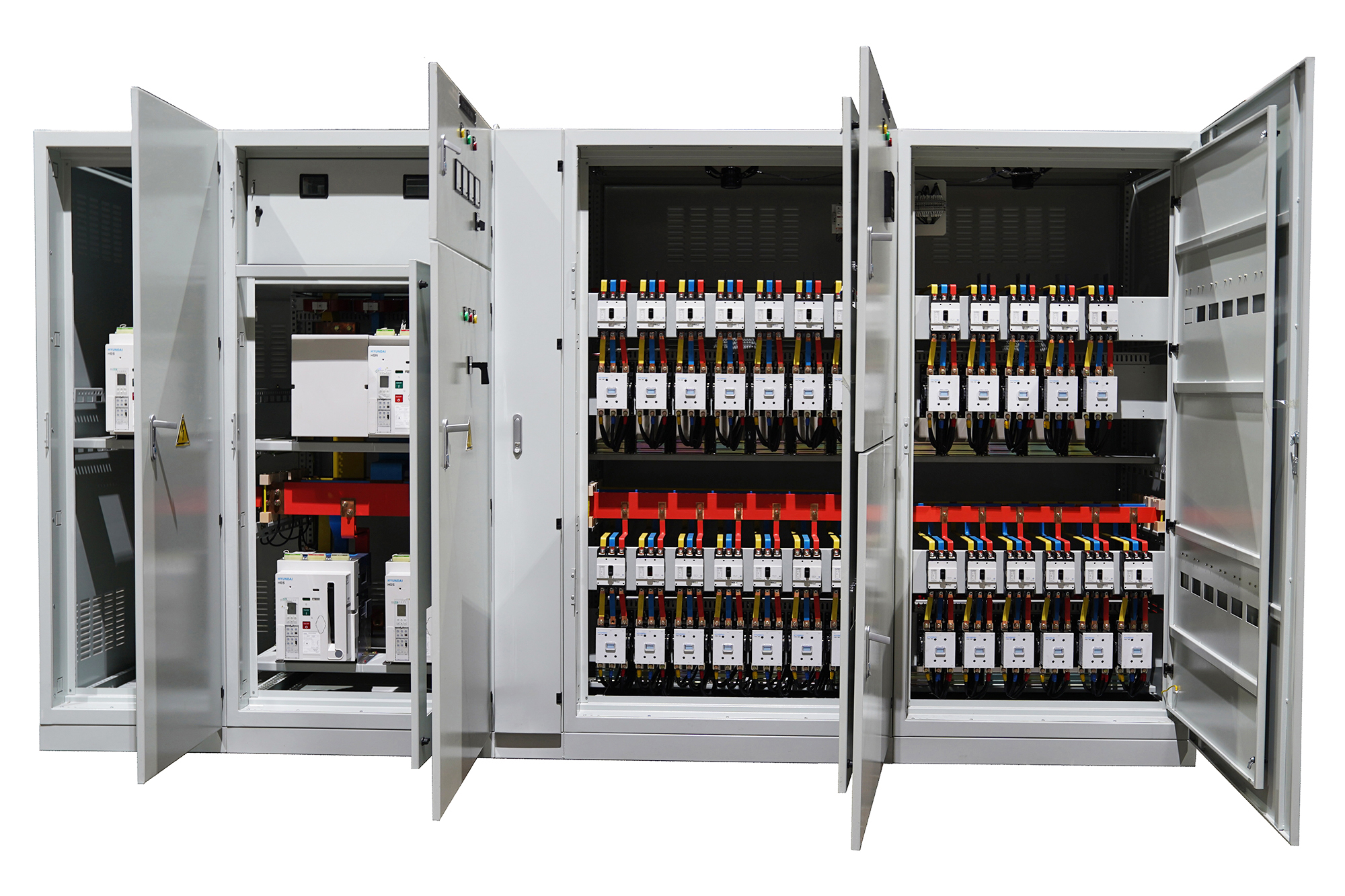

Designed for seamless integration, a typical capacitor bank cabinet connects in parallel with the load and is governed by an intelligent automatic capacitor control unit via a contactor. Its primary mission is to optimize the power factor (cosφ), significantly reducing reactive power—often referred to as “wasted power.” By doing so, it minimizes energy costs and helps users avoid penalties imposed by utility providers for low power factor performance.

These systems are versatile, available as standalone units or integrated into distribution switchboards, offering flexibility to meet diverse operational needs. Our designs prioritize advanced ventilation strategies to ensure optimal performance, prevent power loss, and extend the system’s lifespan, delivering reliability and efficiency.

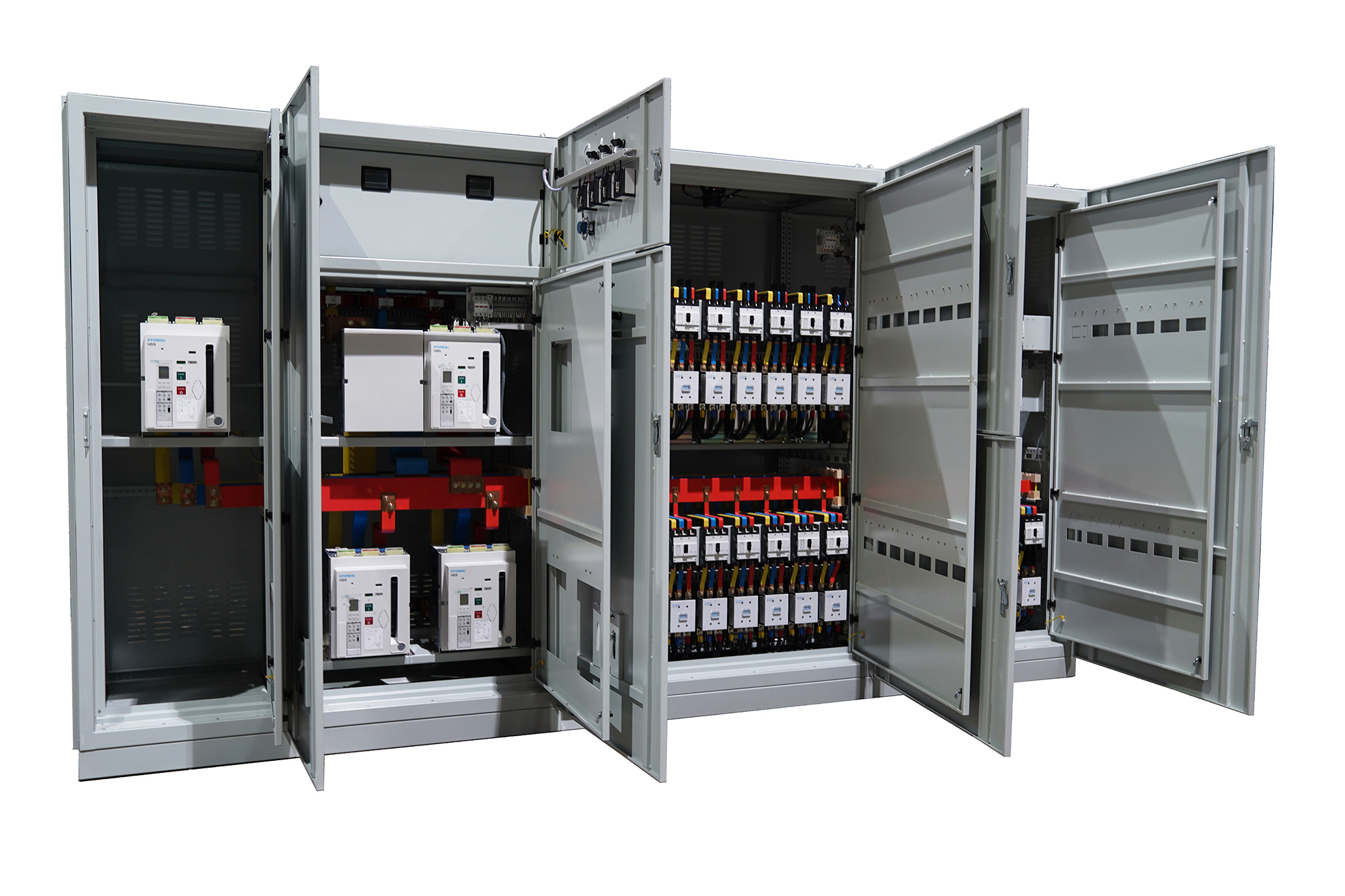

Equipped with either a 6-step or 12-step capacitor bank controller, these cabinets provide precise control and adaptability. Each low-voltage capacitor unit is available in a range of capacities—10, 20, 25, 30, 50, or 100 kVA—catering to a wide array of applications and ensuring tailored solutions for power factor correction.

Applications

Power factor optimization capacitor bank cabinets are cutting-edge energy-saving solutions widely adopted in industrial facilities and manufacturing plants. These advanced systems are designed to enhance the power factor of low-voltage electrical networks, delivering significant technical and economic benefits. By improving the power factor, these cabinets substantially reduce annual electricity costs, minimize power losses, and mitigate voltage drops, thereby elevating the overall quality and reliability of the electrical grid.

Available in fixed or multi-step automatic configurations, these cabinets are tailored to match varying user loads, ensuring optimal performance. They maintain the power factor above the critical threshold (typically > 0.8) mandated by utility providers, guaranteeing precise and effective compensation that aligns with operational demands.

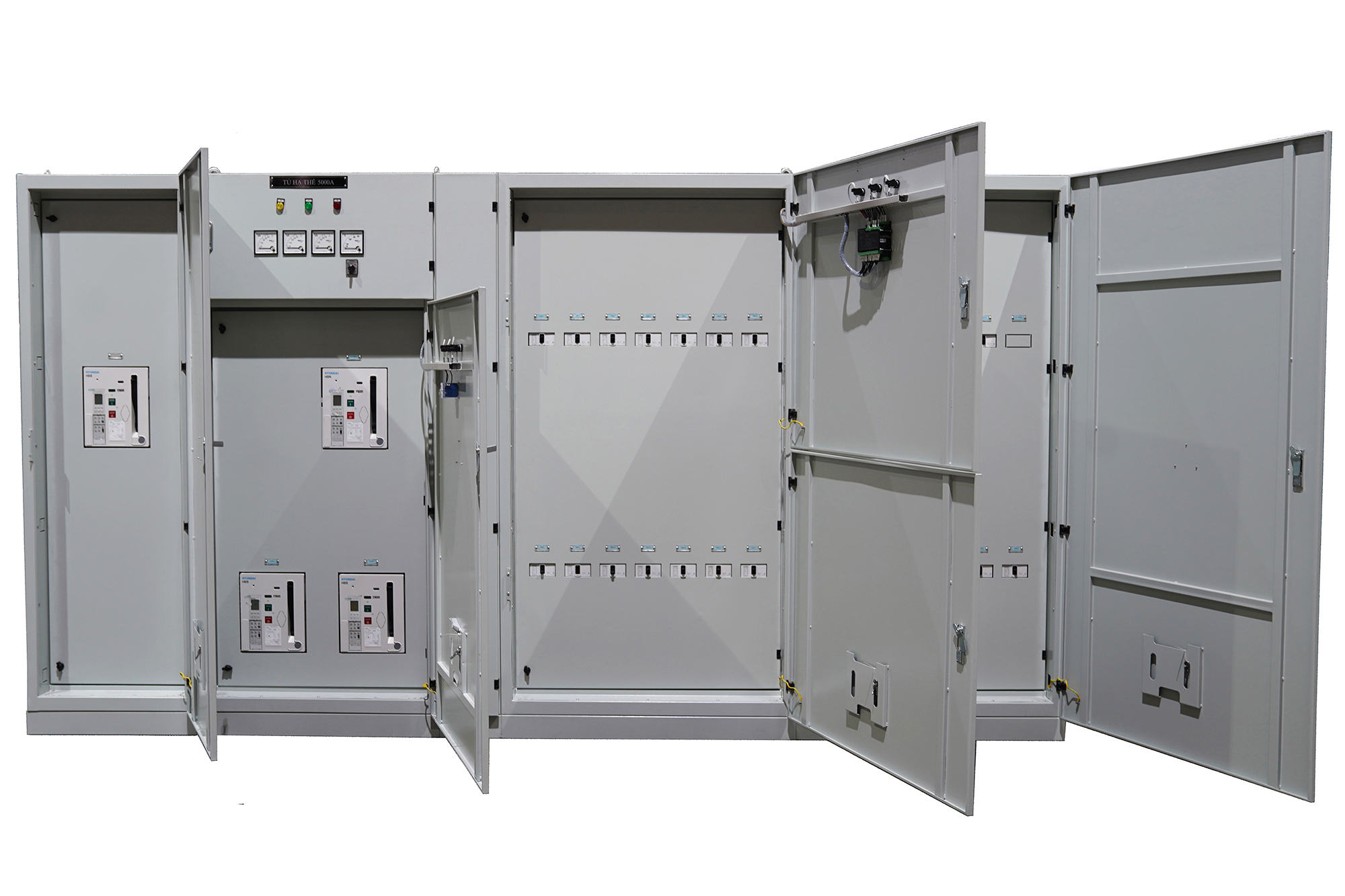

Construction

The core of a power factor optimization capacitor bank cabinet lies in its meticulously engineered design. It features high-quality paper capacitors impregnated with specialized oil, constructed using elongated aluminum foils separated by insulating paper layers. These components are securely housed within a robust, sealed welded tank, ensuring durability and safety. Two external electrode terminals protrude from the tank, facilitating seamless integration into electrical systems.

Classification

Capacitor banks are categorized based on their construction and voltage, ensuring tailored solutions for diverse applications:

Construction-Based Classification

• Dry-Type Capacitors: These feature a sleek, cylindrical design, making them compact, lightweight, and easy to install or replace. Their cost-effectiveness makes them ideal for applications where space and budget are key considerations.

• Oil-Type Capacitors: Housed in robust rectangular tanks, these capacitors offer superior durability, making them the preferred choice for high-power factor correction systems and environments with challenging electrical conditions.

Voltage-Based Classification

• Single-Phase Low Voltage Capacitors: Designed for voltages of 230V and 250V, these units cater to simpler, single-phase systems.

• Three-Phase Low Voltage Capacitors: Operating at a range of voltages—230V, 380V, 400V, 415V, 440V, 525V, 660V, 690V, 720V, and 1100V—these are versatile solutions, with 415V and 440V being the most commonly used in industrial applications.

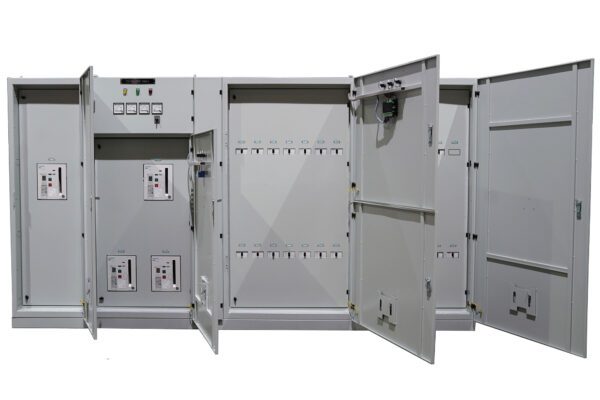

Technical Specifications

Power factor optimization capacitor bank cabinets are engineered to meet rigorous industry standards, ensuring reliability and performance:

• Compliance: Adheres to IEC 60439-1 standards.

• Insulation Voltage: 1000VAC, ensuring robust electrical isolation.

• Operating Voltage: 690VAC, suitable for demanding industrial environments.

• Pulse Voltage: 12kVA, providing resilience against voltage surges.

• Frequency: 50Hz, aligning with standard power systems.

• Short Circuit Current: 50kA for 1 second, ensuring safety under fault conditions.

• Material: Constructed from 1.5–2.5mm high-grade steel plate for durability.

• Protective Surface: Coated with premium powder coating for corrosion resistance.

• Standard Color: RAL-compliant for consistent aesthetics.

• Standard Dimensions: H2200 x W1000 x D1000 mm, optimized for seamless integration.

Testing

Rigorous testing is a cornerstone of the production process for power factor optimization capacitor bank cabinets, ensuring compliance with stringent electrical testing regulations. At Quan Pham, every unit undergoes a meticulous testing protocol before delivery to guarantee performance and reliability.

As a critical component in industrial electrical systems, these capacitor banks require thorough validation to ensure seamless operation within the broader power network. Quan Pham has invested in a state-of-the-art transformer laboratory, equipped with advanced synchronized testing equipment from Haefely, Switzerland. This cutting-edge facility ensures unparalleled accuracy and precision, delivering capacitor bank cabinets that meet the highest standards of quality and performance.

Where to Purchase

With nearly two decades of expertise in manufacturing transformers and electrical equipment, Quan Pham stands as a premier provider of power factor optimization capacitor bank cabinets. Renowned for professional service and reliable on-site warranty support, Quan Pham is the trusted choice for customers seeking high-quality, dependable solutions.

In addition to capacitor bank cabinets, Quan Pham offers a comprehensive range of electrical substation cabinet products, including:

• Integrated Kiosk Substation: Compact and efficient solutions for power distribution.

• Single-Column Transformer Substation: Streamlined design for reliable power transformation.

• Medium Voltage Switchgear Cabinet: Robust systems for medium-voltage applications.

• Low Voltage Distribution Cabinet: Versatile solutions for low-voltage power distribution.

• Motor Control Center (MCC) Cabinet: Advanced control systems for industrial motor management.

Choose Quan Pham for innovative, durable, and expertly crafted electrical solutions tailored to your needs.
