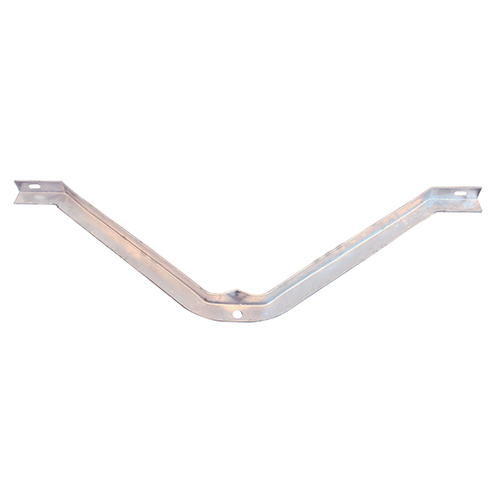

V Crossarm Brace
- One piece brace is used to support heavy crossarms on utility poles.
- Brace is attached to the underside of crossarms using 1/2″ lag screws and is fastened to the pole using a 5/8″ Machine Bolt.
- Formed from AISI 1020 Steel.
- Hot dip galvanized to meet ASTM Specification F2329.
- Description
Description
V CROSSARM BRACE
The V Crossarm Brace is a robust, high-strength steel component designed for overhead power distribution systems. It serves as a critical reinforcement to boost the structural rigidity and overall stability of utility poles and crossarms. By minimizing conductor sagging and preserving accurate alignment and spacing of wires, insulators, and attached hardware (including transformers), this brace ensures safe and efficient power transmission. Its distinctive V-shaped installation creates a strong diagonal support between the pole and crossarm, making it especially effective in high-load scenarios or where lines change direction at angles.
| 37″ V CROSSARM BRACE 12″ DROP 1-1/2″ X 1-1/2″ X 3/16″ STEEL | |
| 42″ V CROSSARM BRACE 12″ DROP 1-1/2″ X 1-1/2″ X 3/16″ STEEL | |
| 48″ V CROSSARM BRACE 18″ DROP 1-1/2″ X 1-1/2″ X 3/16″ STEEL | |
| 60″ V CROSSARM BRACE 18″ DROP 1-1/2″ X 1-1/2″ X 3/16″ STEEL | |
| 60″ V CROSSARM BRACE 18″ DROP 1-3/4″ X 1-3/4″ X 3/16″ STEEL | |
| 66″ V CROSSARM BRACE 20″ DROP 1-3/4″ X 1-3/4″ X 3/16″ STEEL | |
| 72″ V CROSSARM BRACE 22″ DROP 1-3/4″ X 1-3/4″ X 3/16″ STEEL | |
| 88″ V CROSSARM BRACE 27″ DROP 1-3/4″ X 1-3/4″ X 3/16″ STEEL |
