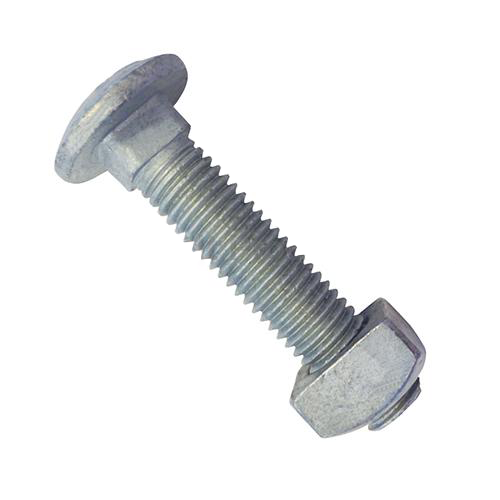

Carriage Bolt
- Designed for use in square holes to keep the bolt from turning as the nut is tightened. Once bolt is inserted in square hole, bolt is tightened without gripping the bolt head.
- Bolt head marking (ABI) appears on head of each bolt and is registered with the U.S. Patent Office per the Fastener Insignia Act.
- Manufactured from Grade 2 Steel.
- Hot dip galvanized to meet ASTM Specification F2329.
- Carriage Bolts are full threaded.
- Minimum tensile strength: 1,050 lbf.
- Recommended torque value: 20 in lb.
- Description
Description
A carriage bolt is a fastener with a smooth, dome-shaped head and a square section beneath it, designed for securing wood or soft materials by locking into the hole to prevent spinning when a nut is tightened from the other side, offering a neat, snag-free finish ideal for decks, fences, and playground equipment.
Table of Contents
3/16″ CARRIAGE BOLT
| 3/16″ X 1″ CARRIAGE BOLT | |
| 3/16″ X 1-1/4″ CARRIAGE BOLT |
1/4″ CARRIAGE BOLT
| 1/4″ X 1-1/2″ CARRIAGE BOLT | |
| 1/4″ X 2″ CARRIAGE BOLT | |
| 1/4″ X 2-1/4″ CARRIAGE BOLT | |
| 1/4″ X 2-1/2″ CARRIAGE BOLT |
5/16″ CARRIAGE BOLT
| 5/16″ X 3″ CARRIAGE BOLT |
3/8″ CARRIAGE BOLT
| 3/8″ X 1-1/4″ CARRIAGE BOLT | |
| 3/8″ X 2-1/2″ CARRIAGE BOLT | |
| 3/8″ X 3″ CARRIAGE BOLT | |
| 3/8″ X 4″ CARRIAGE BOLT | |
| 3/8″ X 4-1/2″ CARRIAGE BOLT | |
| 3/8″ X 5″ CARRIAGE BOLT | |
| 3/8″ X 5-1/2″ CARRIAGE BOLT | |
| 3/8″ X 6″ CARRIAGE BOLT | |
| 3/8″ X 7″ CARRIAGE BOLT | |
| 3/8″ X 8″ CARRIAGE BOLT | |
| 3/8″ X 10″ CARRIAGE BOLT | |
| 3/8″ X 12″ CARRIAGE BOLT | |
| 3/8″ X 14″ CARRIAGE BOLT |
1/2″ CARRIAGE BOLT
| 1/2″ X 1-1/2″ CARRIAGE BOLT | |
| 1/2″ X 2-1/2″ CARRIAGE BOLT | |
| 1/2″ X 4″ CARRIAGE BOLT | |
| 1/2″ X 4-3/4″ CARRIAGE BOLT | |
| 1/2″ X 4-1/2″ CARRIAGE BOLT | |
| 1/2″ X 5″ CARRIAGE BOLT | |
| 1/2″ X 5-1/2″ CARRIAGE BOLT | |
| 1/2″ X 6″ CARRIAGE BOLT | |
| 1/2″ X 7″ CARRIAGE BOLT | |
| 1/2″ X 8″ CARRIAGE BOLT | |
| 1/2″ X 10″ CARRIAGE BOLT |
5/8″ CARRIAGE BOLT
| 5/8″ x 2-1/2″ CARRIAGE BOLT | |
| 5/8″ x 4″ CARRIAGE BOLT | |
| 5/8″ x 5″ CARRIAGE BOLT | |
| 5/8″ x 5-1/2″ CARRIAGE BOLT | |
| 5/8″ X 6″ CARRIAGE BOLT | |
| 5/8″ x 8″ CARRIAGE BOLT |
3/4″ CARRIAGE BOLT
| 3/4″ x 4″ CARRIAGE BOLT |
