Main Distribution Switchboard (MSB): The Heart of Industrial Electrical Systems

If you’re looking for essential insights into the Main Distribution Switchboard (MSB), this article provides a clear and comprehensive overview of its role, structure, and applications.

1. What is a Main Distribution Switchboard (MSB)?

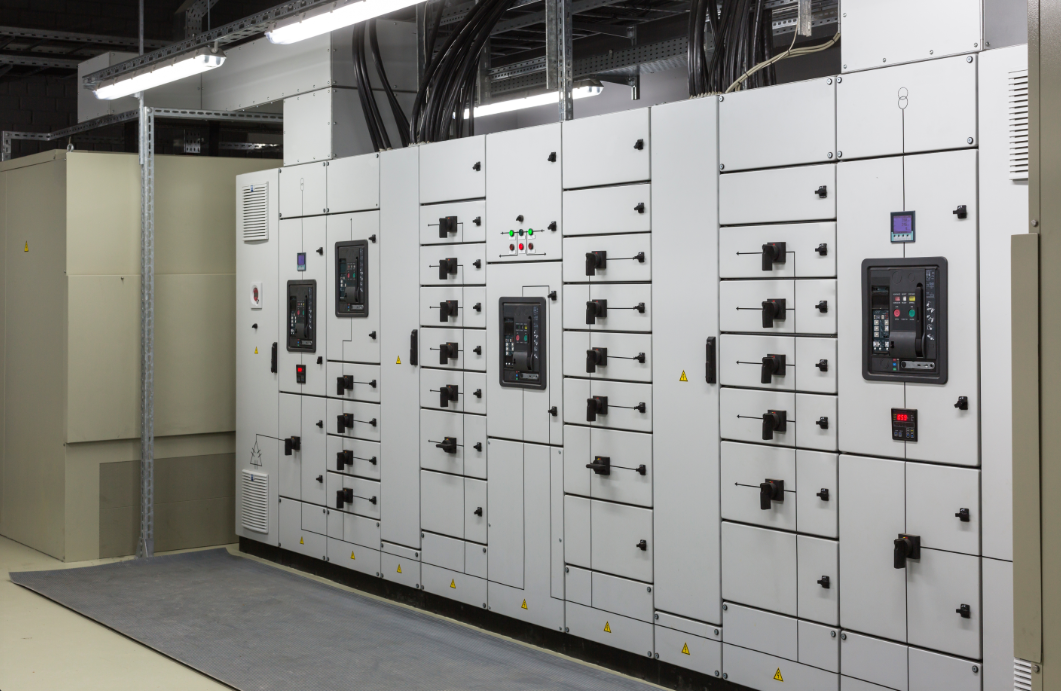

The Main Distribution Switchboard (MSB), often referred to as the main electrical panel or main switchboard, is the cornerstone of a facility’s low-voltage electrical system. Positioned after the low-voltage transformer substation and before the Distribution Boards (DBs), the MSB serves as the primary entry point for power distribution, ensuring efficient and safe energy flow.

2. Core Functions of the MSB

The MSB’s primary role is to manage and protect electrical load sub-systems. Capable of handling rated currents up to 6300A, it acts as a robust control hub, switching power and safeguarding downstream circuits from overloads or faults.

3. Structure of the Main Distribution Switchboard

Designed for versatility and reliability, the MSB is a modular system with distinct compartments tailored for specific functions. These include main Air Circuit Breakers (ACBs), Molded Case Circuit Breakers (MCCBs), load output MCCBs/Miniature Circuit Breakers (MCBs), capacitor banks, Automatic Transfer Switch (ATS) units, and advanced remote monitoring via GPRS. Quan Pham manufactures MSBs in compliance with IEC 60439-1 standards, supporting rated currents up to 6300A.

3.1. MSB Cabinet

Crafted from high-quality galvanized steel or stainless steel (201 or 304 grades), the MSB cabinet is coated with durable electrostatic paint in matte or glossy finishes, customizable to client preferences. Key specifications include:

• Height: 200–2200 mm

• Depth: 150–1000 mm

• Width: 200 mm and above

• Material Thickness: 1.0 mm, 1.2 mm, 1.5 mm, or 2.0 mm

• Colors: Cream, gray, orange, or natural material finish

• Design: Detachable doors, side panels, and rear panels for easy installation and maintenance

3.2. Internal Components

The MSB’s internal equipment is sourced from trusted global brands such as ABB and LS, ensuring top-tier performance. Components are arranged and configured to meet specific customer needs, offering flexibility and precision in power management.

4. Applications of the MSB

The MSB is a vital component in low-voltage electrical networks, serving as the backbone of power distribution in diverse settings. It is widely used in:

• Industrial workshops and factories

• Shopping malls and commercial centers

• High-rise buildings and residential complexes

• Hospitals, schools, ports, and airports

Its reliability makes it indispensable for any facility requiring stable and efficient power distribution.

5. Key Features of Quan Pham’s MSB

Quan Pham’s MSB stands out for its modular design, featuring specialized compartments for load MCCBs, copper busbars, and loss prevention monitoring. Key highlights include:

• User-Friendly Operation: Designed for safe and efficient use, with quick equipment replacement without power interruption.

• Logical Layout: Switching devices, circuits, copper busbars, and terminal blocks are meticulously organized and labeled for clarity, safety, and aesthetics.

• Compliance: Meets rigorous mechanical and electrical standards, ensuring durability and performance.

6. Why Choose Quan Pham for Your MSB?

With nearly two decades of expertise in manufacturing power transformers, electrical panels, and substations, Quan Pham has solidified its reputation as a trusted leader in Vietnam’s electrical industry. Beyond MSBs, Quan Pham offers a wide range of products, including solar energy transformers, high-frequency furnace transformers, single-phase and three-phase oil transformers, medium-voltage switchgear panels, low-voltage switchgear panels, and ATS panels. Quan Pham’s MSBs are a preferred choice for electrical systems in factories, residential complexes, hospitals, and major projects across the country, delivering unmatched quality and reliability.
