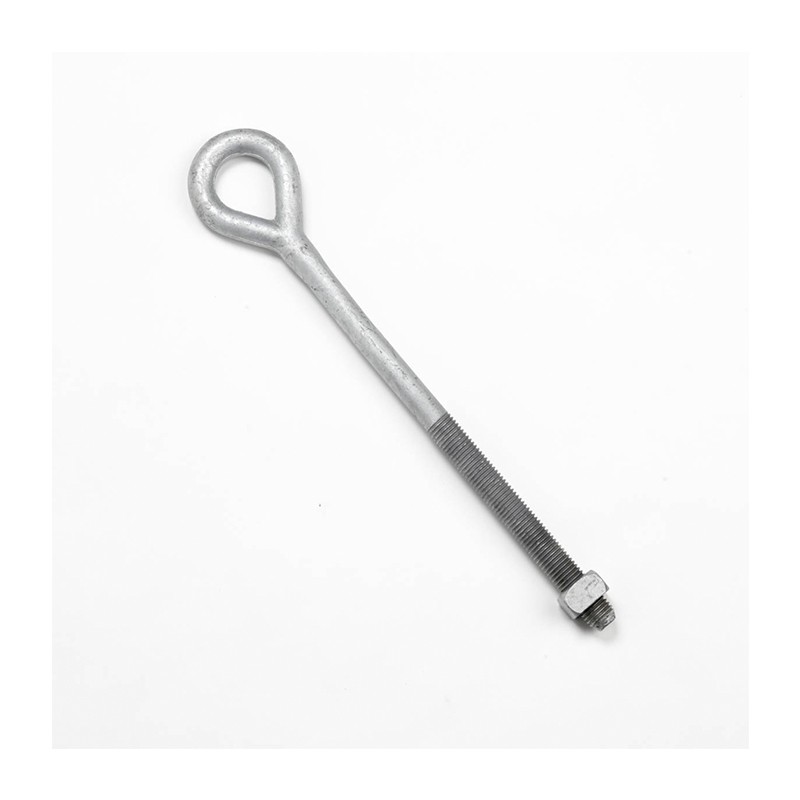

Oval Eye Bolt
Oval eye bolts are used to support suspension insulators in deadend applications.
- Description
Description
Oval Eyebolts are a forged, one piece design and are commonly used as an attachment point to secure thimbles.
Hardware for deadending conductor and guy wires, offered by the Quan Pham brand, consist of Thimbleye® and oval eye bolts, banding, eyenuts and eyelets, guy attachments and guy markers. All products are designed and manufactured in compliance with applicable electric utility and communications industry standards.
- 6″ thread length
- Includes one square nut
- Eye dimensions are 5/8″ x 1 1/2″ x 2″
- Rated tensile strength is 13,550 lbs.
- Galvanized steel per ASTM A-153
- Manufactrured in compliance with ANSI C135.4 and C135.5
- RUS listed o – Bolt, eye, oval
5/8″ OVAL EYE BOLT
| 5/8″ X 6″ OVAL EYE BOLT | |
| 5/8″ X 8″ OVAL EYE BOLT | |
| 5/8″ X 10″ OVAL EYE BOLT | |
| 5/8″ X 12″ OVAL EYE BOLT | |
| 5/8″ X 14″ OVAL EYE BOLT | |
| 5/8″ X 16″ OVAL EYE BOLT | |
| 5/8″ X 18″ OVAL EYE BOLT | |
| 5/8″ X 20″ OVAL EYE BOLT | |
| 5/8″ X 22″ OVAL EYE BOLT | |
| 5/8″ X 24″ OVAL EYE BOLT |
3/4″ OVAL EYE BOLT
| 3/4″ X 8″ OVAL EYE BOLT | |
| 3/4″ X 10″ OVAL EYE BOLT | |
| 3/4″ X 12″ OVAL EYE BOLT | |
| 3/4″ X 14″ OVAL EYE BOLT | |
| 3/4″ X 16″ OVAL EYE BOLT | |
| 3/4″ X 18″ OVAL EYE BOLT | |
| 3/4″ X 20″ OVAL EYE BOLT | |
| 3/4″ X 22″ OVAL EYE BOLT | |
| 3/4″ X 24″ OVAL EYE BOLT |
