New advances in distribution and control panel assembly

With Superior Design Neat and less space take up more secure Easy Panel Board and E-SMART Panel Board

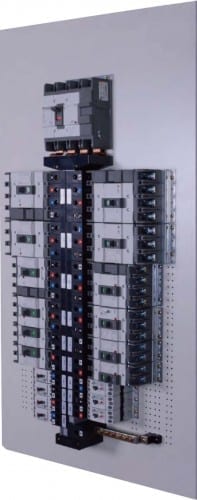

I. Introduction of new distribution cabinet Easy Panel Board:

 -Easy work:
Improved working with busbar vertical arrays and BB KLT
assemble
 -safety
Safe from short circuit and electric shock caused by water
thanks to the completely enclosed structure that includes the charging compartment.
   -Easy maintenance
Adding or changing devices makes circuit breakers easier with the use of BB Kit.

II. Understanding the structure and operating principle

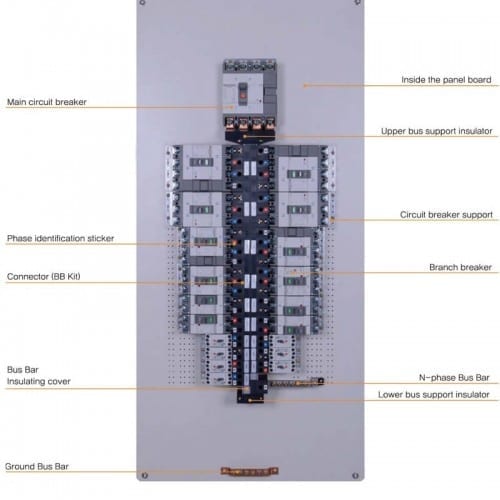

1. Construction:

Simple structure including

-Inside the panel board: main circuit board

-Main circuit breaker: MCCB switches the center circuit

-Upper bus support insulator: conductor supports insulation

-Circuit breaker support: MCCB Circuit breaker support

-Phase identification st cker: phase identification

-Connector (BB K|t): connect to main board

-Bus Bar Insulating cover: foam insulation and insulation

-Branch breaker: break the auxiliary circuit

-Ground Bus Bar : Ground

2. Compare new and old designs

Product Features	Easy Panel Board	Generic panel board
	BB Kit’s application for convenient Bus Bar without separate handling.	Complex assembly process involved to multiple on the busbar and branch busbar.
Unbalanced load phase justment	Easy stage change with BB Kit replacement	Difficulty of work on the device (Can work with cables, etc.)
Convenient maintenance	Easy to install circuit breaker and power regulator using BB Kit.	Difficulty doing busbar work
Need to install circuit breakers	Install additional quantities as needed as needed using BB Kit .	Additional installation difficult must secure multiple parts prior to installation.
Safe to install	Relatively safe using BB Kit.	Relatively safe
Size	100% Standard	100% Standard

3. Specifications
Main capacity: 30AF – 1 20OAF
Sub Power: 3OAF ~ 40OAF
Applicable circuit breakers manufacturers: LS Industrial Systems, Hancess, Hyundai Heavy Industries, Cheil Wire, Daeryuk Electric, Devico, Vitzrotech, Sang Do E & GC,
as well as many other domestic and foreign products.

Vertical Bus Bar Capacity
1OOAF: 3t x 25mm (uniform specification applies from 1OOA down)
225AF: 3t x 35mm
80OAF: 6t x 7Omm
40OAF: 3t X 6Omm (6t X 35mm)
1OOOAF: 6t X 80mm
60OAF: 6t x 5Omm
120OAF: 6t x 6Omm

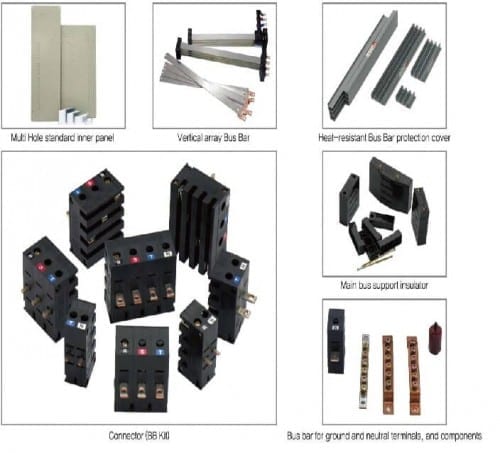

4. Accessories
