To provide information about the electrical energy of each branched load in the distribution cabinet E-Smart panel board in Smart Grid Meter, Smart Measuring Module. It is a wide energy management system associated with power distributors. Can provide a wide range of information to manage energy use analysis, storage, management, power plant operation management, power quality control, equipment and highly effective management to realize now cuts costs through efficient management of electrical energy.
I. About:

  – Electrical power and diagnostic quality electricity
Device module for each allowed shunt feeder

effective management of electrical energy.

   – Company-wide energy management system(EMS)
is a true company-wide energy management system.

    -Convenient maintenance
Adding and changing circuit breakers is easier with the use of BB Kits.

    -Design compact
Small form factor compared to electrical panels with common electronic thread.

II. Structure of power management system

– Smart Grid Meter (SGM: Accura 230O)

Measurements: V, A, Hz, PF, W, Wh, Var, Varh, VA, VAH, THD, TDD
Special measurements: Demand (with peak), current leakage (Option)
Power Quality: Sag (Dip), Great Wave, Intermittent Total Harmonic (1 -31)
· Event log 1 OOunit (Sag, Swell, A, W, etc.)
· Digit || /O: Dt2ch, Do: 1ch
Communication: Ethernet Modbus TCP Protocol 2 RS485 ports, SGM SMM Com
Add: SGM on SSM 3OEA / 6P loop wire: 5M
Measurement Accuracy: 0.5 Class (lEC62053-22)

Provides measurement parameters such as: voltage, current, power, power factor and min. / Max. value for each load, and
Power quality information including Sag, Swell, THD, TDD, and harmonic analysis. In addition, events such as Sag or Swell have an effect on
Power quality triggers an LED alarm and causes the LCD backlight to turn orange, allowing for easy confirmation of the alarm’s location. SGM: 5, 2 LCD display voltage, current, power, min/max parameter/Sag, Swell, THD, TDD, frequency, Sag, Swell-l When alarm, LED/LCD chanes back light like orange

Smart Measurement Module ( SMM : Accura 2350 )
Measurements: V, A, Hz, PF, W, Wh, Var, Varh, VA, VAH, THD, TDD
· Special measurements: current direction, current phase
Communication: RS485 2 Port, 6P loop 5M
Measurement accuracy: O.5 Class (lEC62053-22)
Direct connection: 6OA, 1OOA, 225A
With CT: CT/5A (30OA and above)

The SMM will display measurement parameters such as current, voltage, power factor, and leakage, and allow changes to settings such as current direction and phase sequence.
SMM: LCD displays current, voltage, power factor, leakage, current direction, phase sequence

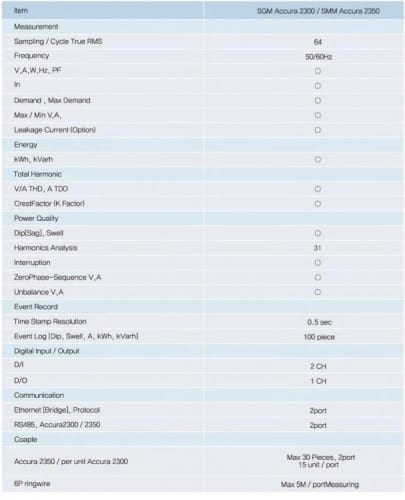

Measuring parameter

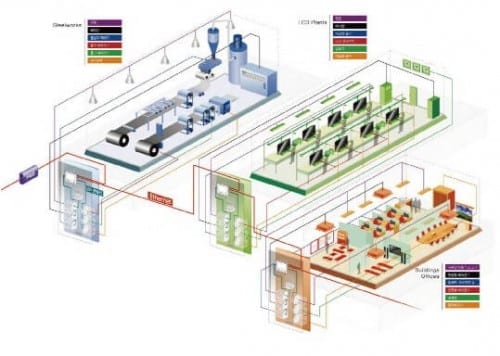

Energy Management System
Smart electronic control panel equipped with a Smart Grid Meter
and Smart Meter Module to provide
Electrical energy information per load has branches at the control panel In connection with the incoming control panel, a company-wide energy management system
actually done.
Changes affected by Load Power Management
Collecting electrical energy information enables an intelligent energy management system transformation to be realized from total load energy information management to individual load analysis and diagnostics.

Energy efficient codes for high performance devices
Energy Monitoring Management can use the meter and instrumentation module to measure the efficiency of various high-efficiency devices [LED lighting, motors, electrical appliances, equipment] for diagnostics. predict the performance of the application
devices with high efficiency and alternative energy by providing
highly accurate energy information.
Cost savings through Efficient management of electrical energy
e-smart Control Center provides various information
for electrical equipment operation management,
Power quality management and high performance analysis equipment management, and save costs
through efficient power management.
III. Energy monitoring system

 Smart power management service:

· Analysis Predict the overload of the bias used to protect the circuit.
· Tracks and analyzes low performance devices to save reactive power.
· Tracks and analyzes devices with bad power factor for power factor compensation.
· Reduced harmonics planned for circuits or devices.
· Manage operations by power usage information, including job start and end time.

· Manages backup power for idle loads.
· Load monitoring for comparative analysis of energy usage.
· Comparative analysis of energy use at similar locations.
· Peak power and power factor setting for each load management unit.
· Remote control using IT functions.
· Comparative analysis of energy information by hour, day, month, year, and target energy management.

      IV. Set Points E-SMART Panel Board:

Electrical power and diagnostic quality of each device

Power measurement module for power management for power management on each branch circuit.

Outside, the board size is exactly the same
electrical panel. Preserve the advantage of the cabinet  electronic intelligent control.
· Slim load measurement system.
· Standardized product assembly for simple manufacturing process.
· Easy to add circuit breakers and change capacity.
Easy to change phase and adjust for unbalanced loads.
· No need to install branch too many circuit breaker spare parts.
· The circuit breakers can be replaced with live wires.
· Sealed charging compartment protects against fire and electric shock.

Intelligent construction for high performance:

Solid construction with instrumentation branches · Bolt terminals- strong fastening · Standardization of SB – Kit for smaller size distribution box Distribution · Refractory case · Charging compartment insulation : safe from electric shock or short circuit accidents · Insulated barrier stage for excellent insulation performance · Asymmetric circuit breaker installation increases convenience of maintenance· The -type assembly allows convenient phase selection according to the power supply method (2,3,4 -line)

Intelligent technologies applied in E-SMART Panel Board:

Trcenter admin smart electronic control panel allows personal real-time monitoring of load V , A , Hz , W , Wh , Var , VA , VAH , THD , TDD , Sag , Swell. Each mccb switch has a smart parameter measuring device

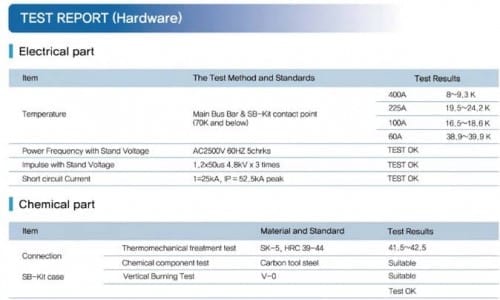

V. Test works under standard conditions
